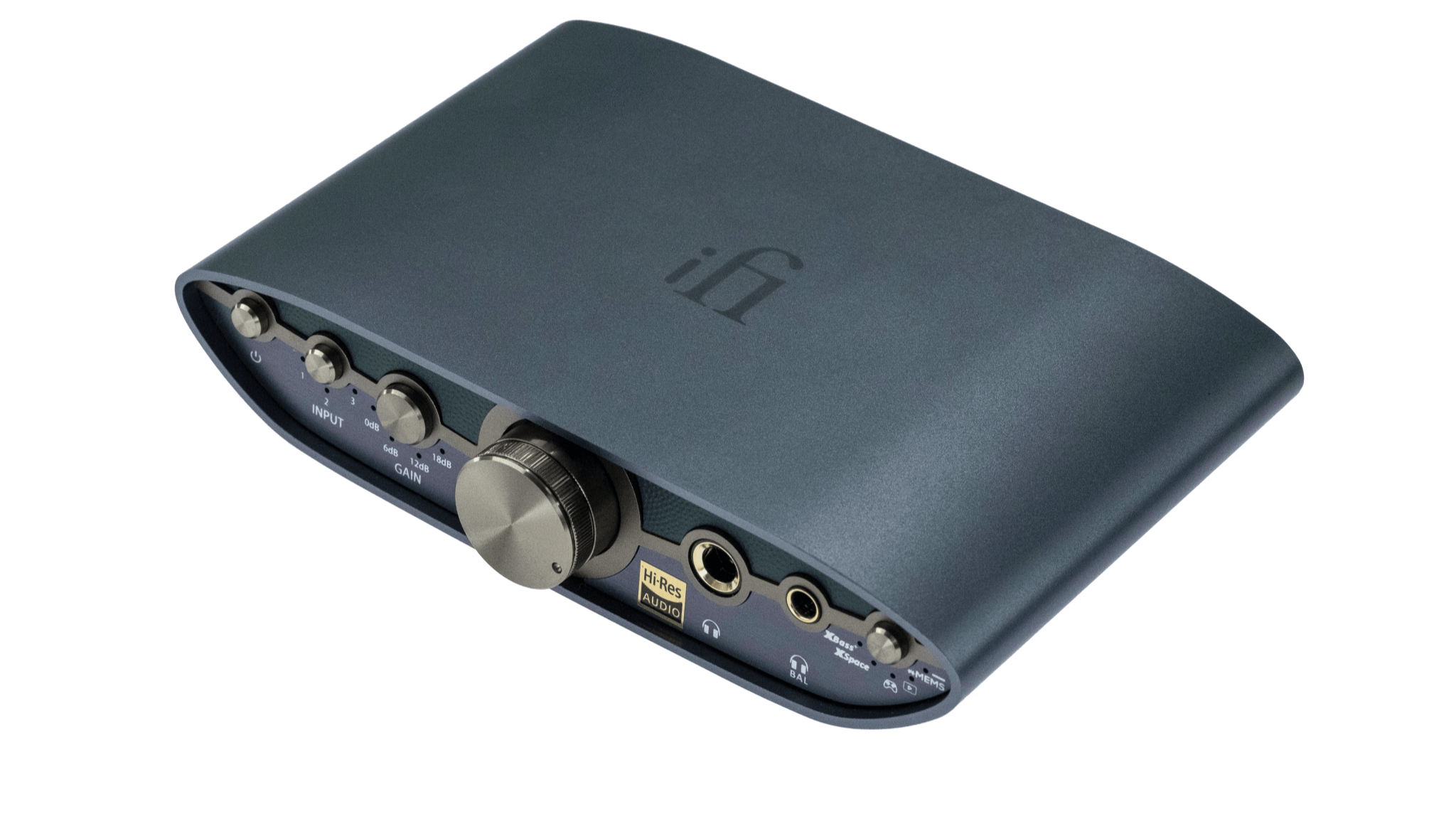

ZEN CAN 3 from iFi audio

Serenity in Every Detail.

With the darkest background, one discovers the tiniest details.

Incredible Power. Uncompromising Clarity.

Today the world is busy, fast, and full of noise. We know the power of music, and how it’s capable of taking you out of this world to someplace new. Somewhere tranquil, where melodies can uplift, and vocals can move you to tears.

The unrivalled clarity of the ZEN CAN 3 envelops you with raw, unadulterated emotion. Hear the crack of a voice, the crescendo of a chorus, the delicate whisper of a piano – every note and nuance is delivered with breathtaking precision. The ZEN CAN 3 ignites late-night listening sessions with its ability to effortlessly drive headphones – from xMEMS-based IEMs to high-end planars – delivering up to 2,000mW output power through the same Class A circuitry found in our flagship iCAN Phantom.

Isolate yourself from the chaos of the outside world with our all-new analogue EQ-modes, allowing for full immersion during intense gaming and movie marathons.

ZEN CAN 3 from iFi audio

Future-Proof Features.

 The ZEN CAN 3 now supports IEMs using xMEMS, an innovative micro-speaker technology pushing the boundaries of headphone performance.

  • Ultra-fast mechanical response, 150 times faster than a typical dynamic driver
  • Flat 2° phase response for more accurate sound reproduction
  • +/- 1° phase matching for more accurate spatial sound
  • Silicon speaker diaphragm, 95 times more rigid than plastic, for reduced speaker break-up and a less muddy midrange

By incorporating the pioneering xMEMS amplification first found in the flagship iDSD Diablo-X, the ZEN CAN 3 can deliver the voltage required for optimal operation of this cutting-edge technology, bringing the power of xMEMS to a whole new audience and ensuring that you are ready for the future as it happens.

Crisp Footsteps. Clear Voices.

Have you ever experienced watching a thrilling scene only to struggle to hear what the characters are saying? This is a frustration shared by many, as streamed content often has dialogue that gets lost amidst background sounds and music.

Enter movie mode, an EQ specifically designed to address the clarity of dialogue in streamed content, enabling you to fully immerse in the narrative without straining to hear or decipher what is being said.

Game mode caters directly to the needs of those constantly seeking any
advantage they can get in competitive play.
Gamers understand the importance of hearing even the faintest sounds that can give away an opponent’s position or signal an approaching threat.

Game mode’s EQ enhances this aspect of gameplay by sharpening subtle, low-level sound effects, ensuring that every sound becomes more distinct and easier to pinpoint. Whether navigating through intense firefights or sneaking up on enemies, this heightened audio sensitivity allows you to stay one step ahead of opponents.

ZEN CAN 3 from iFi audio

Prodigious Power.

With its impressive 2,000mW output power, the ZEN CAN 3 offers a significant upgrade to the way you experience music through headphones, with unprecedented clarity and headroom.

Its ability to handle dynamic peaks with ease means you can experience music as it was meant to be heard – vivid, immersive, and profoundly moving. It means more than just loudness – it’s about feeling the music resonate through you, stirring your soul and creating a connection that transcends mere sound.

Whether its planar magnetic headphones requiring more power to drive accurately, or high-impedance models that need ample current delivery, the ZEN CAN 3 rises to the challenge.

Superior Components. Class A Sound.

The ZEN CAN 3 features trickle-down Class A discrete balanced circuitry from our flagship headphone amplifier. Underpinning the circuitry are cherry-picked, premium components from Panasonic, TDK, MELF, Texas Instruments and muRata.

The amplification stage boasts iFi/AMR’s own ‘OV’ (Operationsverstärker) series op-amps, outperforming commercial chips that use low-grade copper and inexpensive aluminium bond-wire.

Performance of the ZEN CAN 3 is optionally upgradable by powering with an ultra-quiet power supply. The SilentPower iPower2 boasts performance more than 10 times quieter than other audiophile solutions – ensuring the clarity you crave is never compromised.

ZEN CAN 3 from iFi audio

DSP-Free Purity.

Unlike other audiophile offerings, all the ZEN CAN 3’s features are done with analogue circuitry, as opposed to Digital Signal Processing (DSP), where the audio signal is manipulated before being converted to true analogue sound.

Instead, the ZEN CAN 3 leverages the natural advantages of analogue circuitry: it maintains the integrity of the sound, introduces less phase shift and distortion, and boasts a more natural-sounding adjustment of frequencies.

iFi’s signature analogue bass enhancement, XBass+, is designed to make bass hit harder without compromising the clarity of the midrange – perfect for when you’re listening with IEMs or open-back headphones that lack bass response.

XSpace recreates the expansive soundstage of speakers, transforming headphone listening from confined and ‘inside your head’ to natural and spacious. This technology makes music come alive, offering a concert-like sound experience without losing any detail or resolution – all achieved through the innovative design of our circuitry.

Majestic measurements

ZEN CAN 3: 1,600mW
Laptop Headphone: 30mW

52x

more headphone power

Active 'v' Passive Speakers

So, what’s the difference?

Active speakers have an in-built power amplifier and just need a power cable (or battery) to operate. Passive speakers require an external power amplifier to operate.

In short, you need an amplifier for passive speakers, you don’t with active speakers.

Sonically superior – richer, deeper.

The XBass® analogue bass correction system corrects for the missing headphone/speaker bass response.

As with many other iFi audio products, we’ve incorporated a custom OV Series operational-amplifier. This top-notch component contributes to the extremely low noise, low distortion (0.0001%) and wide bandwidth.

A Tokyo Cosmos Electric Co. (TOCOS) multi-track potentiometer is used. This has close channel matching tolerance for optimal performance (always use above 11 o’ clock).

TDK C0G (Class 1 ceramic) capacitors offer high stability and low losses for resonant circuit applications.

Getting ever closer to the theoretical ideal of pure, frequency-constant capacitance, these capacitors reduce capacitor-induced distortion to vanishingly low levels.

They are pricey but are a perfect addition to our products.

Texas Instruments low-noise ICs offer great unity-gain bandwidth, very low noise and distortion, high output drive capability, Common-mode and Power Supply Rejection Ratios of over 100 dB, wide maximum-output-swing bandwidths and high slew rates.

Class A Discrete is a circuit that has come straight out of iFi’s flagship headphone amplifier, the iCAN Phantom, which at £3,749 is 16 times the price of the ZEN CAN 3.

Retailer

Apos Inc.

California
Distributor

iFi audio USA (West Coast)

California
Retailer

ListenUp

Colorado
Retailer

ListenUp

Colorado
Retailer

ListenUp

Colorado
Retailer

Music Direct

Illinois
Retailer

Gramophone

Maryland
Retailer

Gramophone

Maryland
Retailer

Gramophone

Maryland
Retailer

Gramophone

Maryland
Retailer

Gramophone

Maryland
Retailer

Audio Advisor

Michigan
Retailer

Bloom Audio

New Jersey
Retailer

High Definition Tape Transfers

New Jersey
Retailer

ListenUp

New Mexico
Retailer

Turntable Lab NY Storefront

New York
Retailer

Audio 46

New York
Retailer

Moon Audio

North Carolina
Retailer

AudioAdvice

North Carolina
Retailer

AudioAdvice

North Carolina
Retailer

Headphones.com

Oregon
Retailer

World Wide Stereo

Pennsylvania
Retailer

World Wide Stereo

Pennsylvania
Retailer

HIDEF Lifestyle

Pennsylvania
Distributor

iFi audio USA (East Coast)

Virginia
Retailer

USA-Audio Exchange

Virginia

This product is currently out of stock and unavailable.

Input VoltageDC5V/2.5A
AC 100-240V, 50/60Hz
Analogue InputsSE RCA L/R2.0V nominal @ 0dBFS, 1MegOhm Zin
SE 3.5mm1.0V nominal @ 0dBFS, 1 MegOhm Zin
BAL 4.4mm4.0V nominal @ 0dBFS, 24kOhm Zin
Max Input LevelSE RCA3.8V RMS
SE 3.5mm1.92V RMS
BAL 4.4mm7.4V RMS
Headphone Output Section
Output ImpedanceBAL 4.4mm HP<2 Ohms
SE 6.3mm HP<1 Ohm
Headphone Output (RMS)BAL 4.4mm>11.5V/2,000mW (@ 64 Ohms)
SE 6.35mm>7.2V/1,600mW (@ 32 Ohms)
Headphone Output (Max.)BAL 4.4mm>15.1V/385mW (@ 600 Ohms)
>6.2V/1,200mW (@ 32 Ohms)
SE 6.35mm>7.6V/98mW (@ 600 Ohms)
>7.2V/1,600mW (@ 32 Ohms)
xMEMSBAL 4.4mm>21Vpp, 22 Ohms, 11V DC bias
SNRBAL 4.4mm≥125dB (7.3V 4.4mm Input 0dB @ 600 Ohms)
SE 6.35mm≥122dB (1.9V Input 0dB @ 600 Ohms)
DNRBAL 4.4mm≥119dB(A) @ 0dBFS
SE 6.35mm≥119dB(A) @ 0dBFS
THD+NBAL 4.4mm<0.006% (@ 360 mW/2.4V 16 Ohms)
SE 6.35mm<0.006% (@ 100mW/1.27V 16 Ohms)
Line Output Section
Output Impedance<200 Ohms
Output Level4Vrms (0dB 200kOhm load)
SNR≥125dB (7.3V 4.4mm Input 0dB @ 200kOhm)
DNR≥119dB(A)
THD+N0.006% (0dB 200kOhm load)
General
Gain0dB, 6dB, 12dB, 18dB
Frequency Response10Hz-200kHz (-3dB)
Power ConsumptionNo Signal~5W
Max Signal~13W
Dimensions158x117x35mm (6.2x4.6x1.4”)
Net Weight495g (1.09 lbs)
Limited Warranty12 months*
* 12 months typical or as permitted/required by local reseller laws.
**Specifications are subject to change without notice.

“Seriously up your audio game!”

Imagine a device that can take any audio source and make it sound 5x better and you’ve got a good idea of the value of the ifi Audio Zen DAC 3 Headphone Amplifier. Tech expert and audiophile Dave Taylor plugged it into his Apple iPhone 15 Pro and had great results. Here’s his review…
